Characteristic:
‧The spring type spring shock absorber spring cover and spring seat are made of weather resistant rubber or spherical cast iron and hot dip galvanized.
‧ The installation is simple and the adjustment bolts can be used to adjust the height and level as required.
Application:
‧ Ice water mains, cooling towers, pumps, fire pumps
‧ Air-conditioning box, exhaust fan, generator set

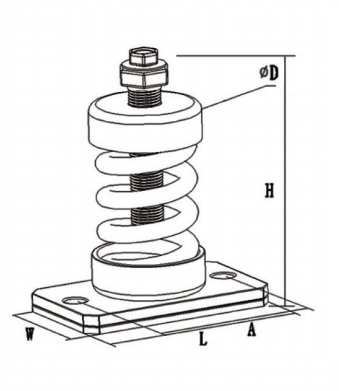

specification | size mm | |||||
L | W | A | H | ΦD | CS | |
MD | 145 | 80 | 120 | 160 | 77 | M12 |
MDF | 120 | 120 | / | 200 | 104 | M12 |
model | Load range Kg | Coefficient of elasticity Kg/mm | Applicable deflection mm | Spring color |
MD-100 | 90-105 | 4.2 | 25 | yellow |
MD-200 | 160-210 | 7.1 | 25 | green |
MD-300 | 260-320 | 10.8 | 25 | red |
MD-400 | 360-430 | 14.2 | 25 | blue |
MD-500 | 470-530 | 19.2 | 25 | brown |
MD-600 | 530-650 | 22.6 | 25 | gray |
MD-700 | 650-700 | 26.0 | 25 | White |
MD-850 | 700-850 | 33.6 | 25 | Yellow |
MD-1000 | 860-1000 | 46.0 | 25 | Dark green |
MDF-100 | 90-120 | 2.2 | 50 | yellow |
MDF-200 | 190-230 | 4.0 | 50 | green |
MDF-300 | 280-320 | 6.0 | 50 | red |
MDF-400 | 370-420 | 8.2 | 50 | blue |
MDF-500 | 480-520 | 10.2 | 50 | brown |
MDF-600 | 520-610 | 11.9 | 50 | gray |
MDF-700 | 680-720 | 13.9 | 50 | White |
MDF-850 | 810-870 | 17.3 | 50 | Yellow |
MDF-100 | 870-1080 | 21.4 | 50 | Dark green |
