Characteristic:
‧ The springs are designed with low natural frequencies and treated with ED and paint.
‧ The springs are heat treated and stress relieved for long service life.
‧ The body is treated with Dak rust.
‧ Bottom anti-skid and anti-chattering bolt design, high safety.
‧ It is simple to install and can adjust height and level according to actual needs.
‧ It can eliminate mechanical structural vibration and protect and extend the mechanical life.
‧ The load deflection is 25mm.
Application:
‧ All kinds of heavy machinery.
‧ Ice main unit, cooling tower
‧ fire pump, exhaust fan.
‧ Generators, air compressors.

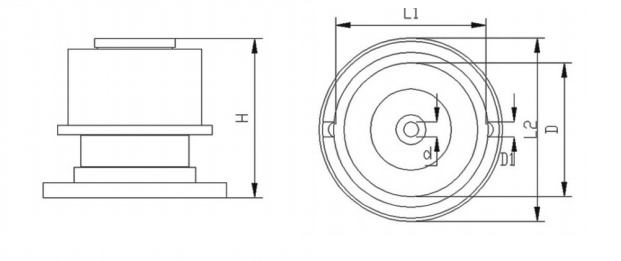

model |
Load range kg |
Coefficient of spring Kg/mm |
Applicable deflection mm | size mm | |||||
H |
D |
L1 |
L2 |
d |
D1 | ||||
MC-030 | 20-30 | 1.2 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-050 | 30-50 | 2.0 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-070 | 50-80 | 2.8 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-090 | 80-100 | 3.6 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-120 | 100-130 | 4.8 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-150 | 130-150 | 6.0 | 25 | 105 | 103 | 100 | 120 | 12 | 10 |
MC-180 | 150-180 | 7.2 | 25 | 110 | 103 | 100 | 120 | 12 | 10 |
MC-250 | 200-250 | 10.0 | 25 | 110 | 103 | 100 | 120 | 12 | 10 |
MC-350 | 250-350 | 14.0 | 25 | 110 | 103 | 100 | 120 | 12 | 10 |
MC-480 | 460-500 | 19.2 | 25 | 110 | 140 | 135 | 165 | 14 | 14 |
MC-640 | 600-650 | 25.6 | 25 | 110 | 140 | 135 | 165 | 14 | 14 |
