Characteristic:
‧ High-efficiency spring vibration isolation device, designed with hydraulic damping cylinder
‧ Suitable for elimination of impact vibration.
‧ Low natural frequency design, good anti-vibration effect
‧ Using EPDM material, good weather resistance and long service life.
‧ Anti-oil cap design with oil resistance prevents general oil corrosion.
‧ Internally designed damping mechanism can effectively avoid resonance.
‧ Natural frequency 3Hz~5Hz.

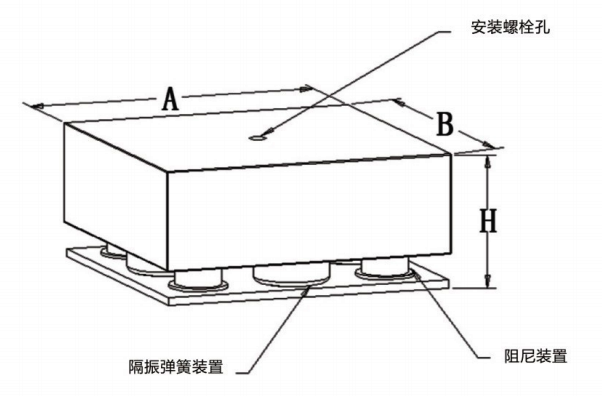

model |
Load range kg | Size (mm) |
bolt | ||
A | B | H | |||
DA-4-400 | 300-400 | 300 | 300 | 150 | M16 |
DS-4-800 | 600-800 | 300 | 300 | 150 | M16 |
DS-4-1200 | 1000-1200 | 300 | 300 | 150 | M16 |
DS-4-1600 | 1400-1600 | 300 | 300 | 150 | M16 |
DS-4-2000 | 1800-2000 | 300 | 300 | 150 | M16 |
DS-4-2400 | 2200-2400 | 300 | 300 | 150 | M16 |
DS-4-2800 | 2600-2800 | 300 | 300 | 150 | M16 |
DS-4-3200 | 3000-3200 | 300 | 300 | 150 | M16 |
DS-4-4000 | 3800-4000 | 300 | 300 | 150 | M16 |
DS-5-5000 | 4650-5200 | 300 | 300 | 150 | M16 |
