Characteristic:
‧ Air floating anti-vibration device, designed with hydraulic damping cylinder
‧ Suitable for the elimination of impact vibration, special for high speed presses.
‧ Low natural frequency design, good anti-vibration effect
‧ With Neoprene Rubber, long service life and long service life.
‧ Anti-oil cap design with oil resistance prevents general oil corrosion.
‧ Internally designed damping mechanism can effectively avoid resonance.
‧ Natural frequency 3Hz~5Hz, maximum use pressure 4.5kg/cm^2.
‧ Damping coefficient 0.12~0.13.
‧ Conforms to JIS D-4101 pressure test standard
Application:
‧ Punch, reciprocating air compressor, hydraulic cutting machine, shearing machine, industrial washing machine.

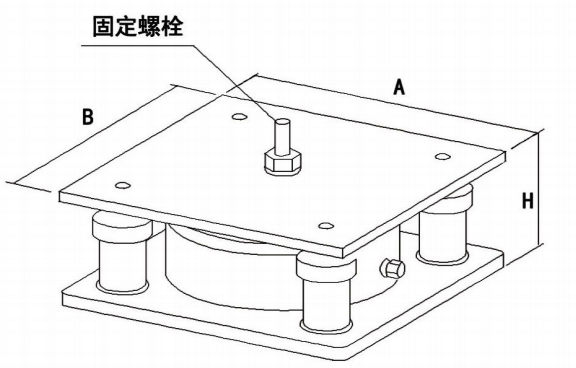

model | Load range Kg | size（mm） | bolt | ||
A | B | H | |||
BK-R-300 | 200-400 | 235 | 235 | 115 | M12 |
BK-R-600 | 400-700 | 260 | 260 | 115 | M12 |
BK-R-800 | 700-900 | 270 | 270 | 115 | M16 |
BK-R-1100 | 900-1200 | 300 | 300 | 115 | M16 |
BK-R-1500 | 1200-1600 | 350 | 350 | 115 | M16 |
BK-R-1900 | 1600-2000 | 400 | 400 | 115 | M16 |
BK-R-2700 | 2000-2800 | 450 | 450 | 115 | M20 |
BK-R-3400 | 2800-3500 | 500 | 500 | 115 | M20 |
BK-R-5900 | 3500-6000 | 575 | 575 | 115 | M24 |
BK-R-8900 | 6000-9000 | 650 | 650 | 115 | M24 |
